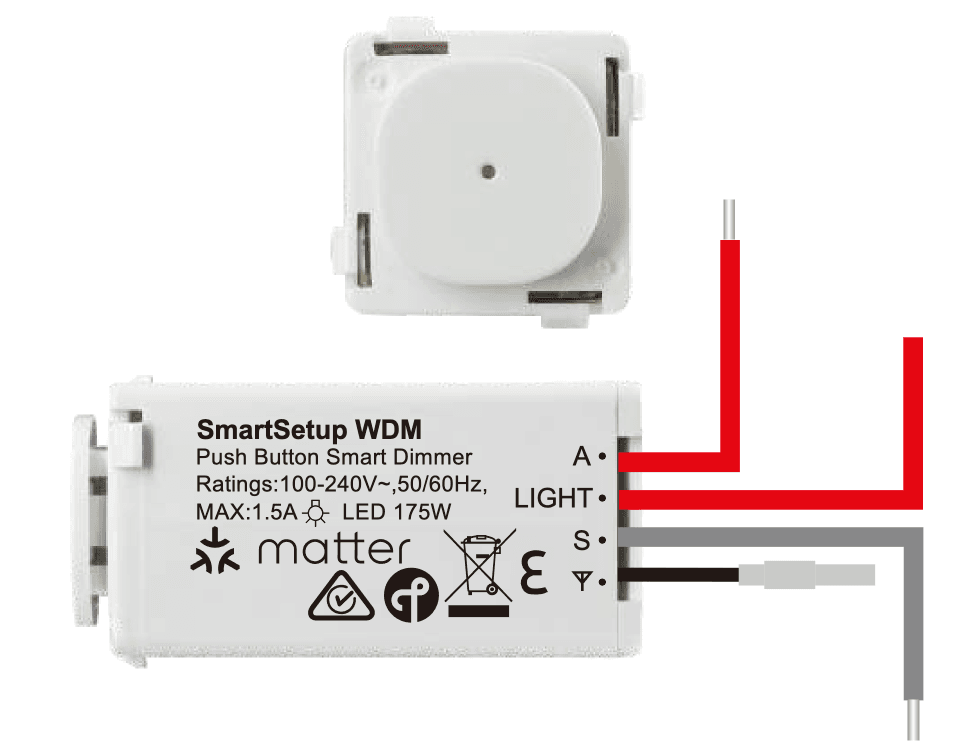

Prestige Matter Over Thread Certified Wall Dimmer Mechanism WDM
$65.00 Tax included
✔Standard size, can be compatible with existing Australia wall switch plate
✔Supports HPM, Clipsal and DETA faceplates

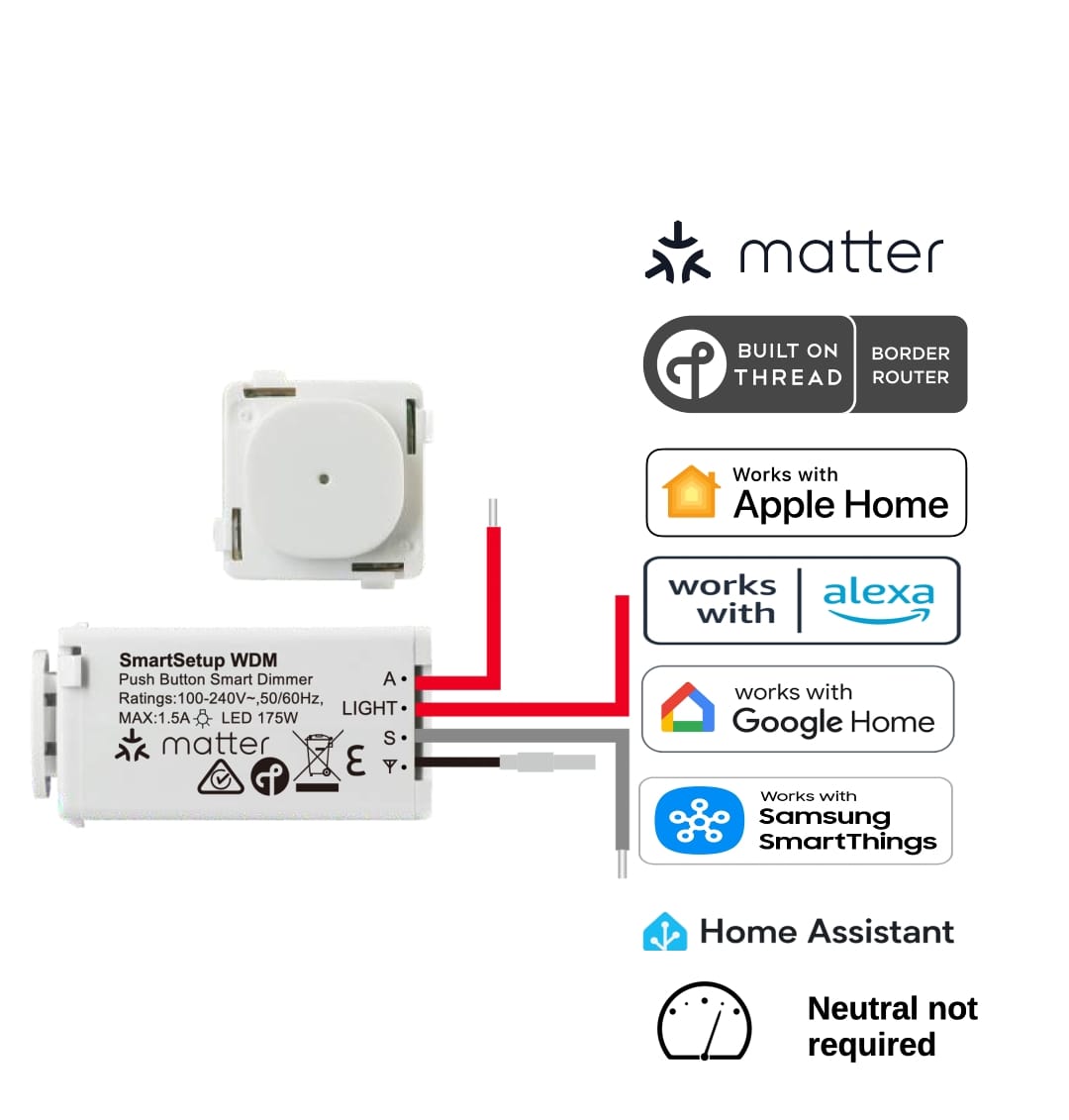

✔Works with Apple Home (Siri)
✔Works with Google Home (google assistant)
✔Works wth Amazon Alexa (Alexa)
✔Works with Samsung SmartThings (Bixby)
✔Works with any echosystem that supports Matter (that has a thread border router)
✔Works local without an internet connection
✔Extend your thread network range as this dimmer acts as a repeater
✔Works without Neutral Wiring (Neutral is not required)
✔Matter certified Thread Wall Switch to control lighting and appliances from your smartphone or tablet.
✔Provides real time feedback as to the On and Off state of your appliances and can be controlled with smart timer function and Scene Mode.
Available for next day shipping
Dimmer review
• Matter push button smart dimmer
• Active power and energy metering functionality

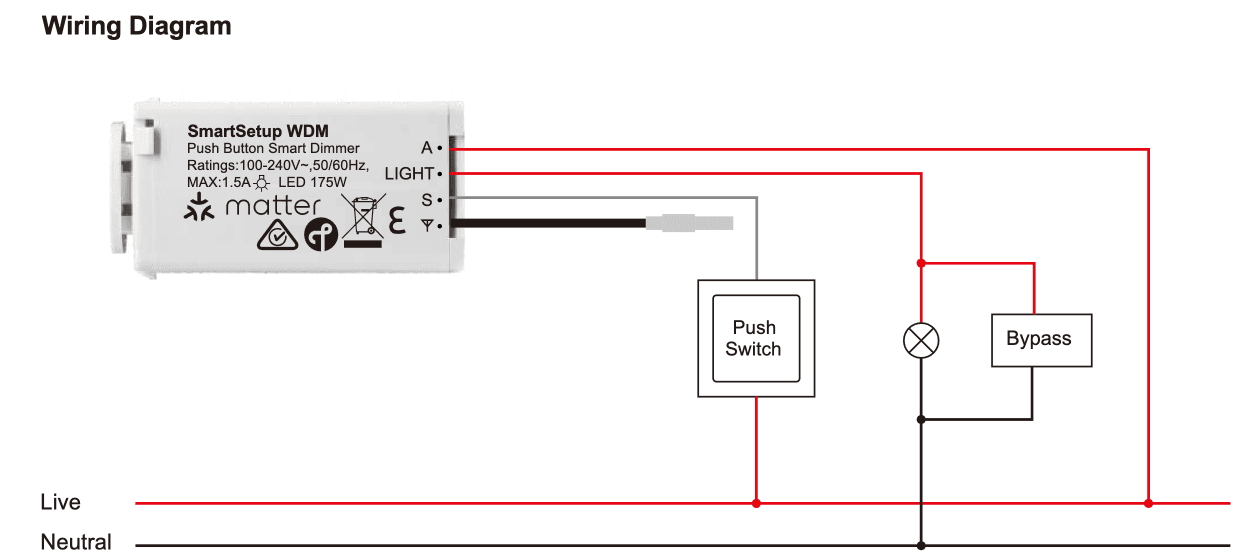

• Neutral free, simple wiring
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• Output, up to 350W
• Trailing edge dimming
• Enables to control ON/OFF and light intensity of connected light source
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• With push switch input, can be controlled by universal AC push switches
• Waterproof grade: IP20
• User manual: here
Technical Specifications
Installation: Professional installation required by a licensed electrician
Input voltage: 100-240VAC
Input Frequency: 50/60Hz
Output voltage: 100-240VAC
Ouput Current: 1.5Amax
Size(LxWxH): 120x74x45mm
Ambient Temperature: -20℃ ~ + 50℃
Warranty: 1 year
Certification: RCM AU/NZ Certified
As a dimmer it operates under the following loads:
• Conventional incandescent and HV halogen light sources
• ELV halogen lamps and dimmable LED bulbs (with electronic transformers)
• MLV halogen lamps (with ferromagnetic transformers)
• Dimmable LED bulbs
• Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass (depending on the type of load)
System Requirement
Apple: Apple TV 4K (2nd gen), Apple TV 4K (3rd gen, 128 GB), HomePod (2nd gen), HomePod mini,
iPhone 15 PRO, iPhone 15 PRO MAX and any iPhone 16 (works without an Apple Home HUB)
Samsung: SmartThings Hub v3, SmartThings Station
Amazon: Echo (4th gen), Echo Hub, Echo Plus (2nd gen), Echo Show 8 (3rd gen), Echo Show 10 (3rd gen), Echo Studio, eero 6, eero 6+, eero Pro 6, eero Pro 6E, eero Max 7
Google: Google TV Streamer, Nest Hub (2nd gen), Nest Hub Max, Nest Wifi Pro
